Applications應用實例

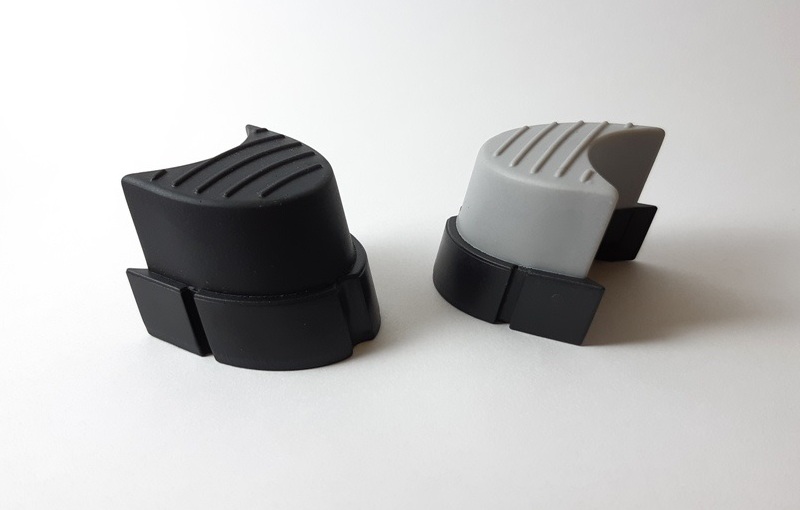

Button for Adjustble ArmrestButton for Adjustble Armrest


★Double Injection Molding (2K Molding) / Rotary Platen

■ Total Weight : 9.65 g

■ Number of Cavity : 4

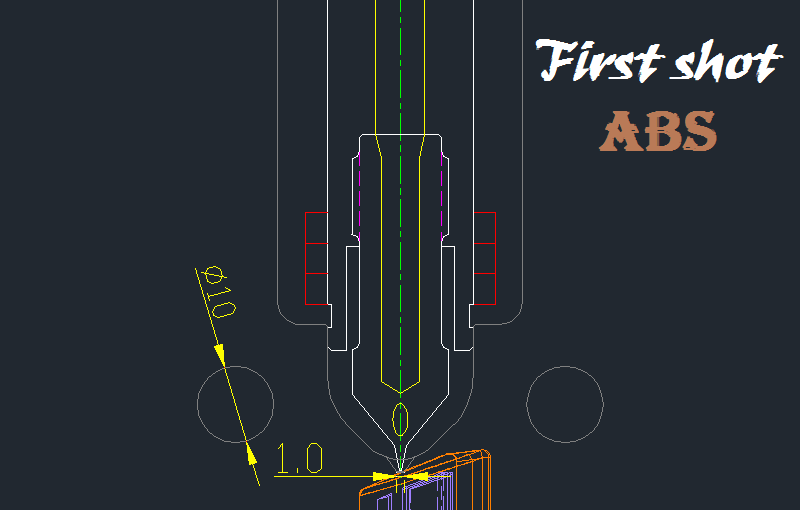

First Shot

■ Product Weight : 5.5 g

■ Molding Resin : ABS / Black

■ Nozzle Type : Pinpoint gate

■ Gate Location : Part

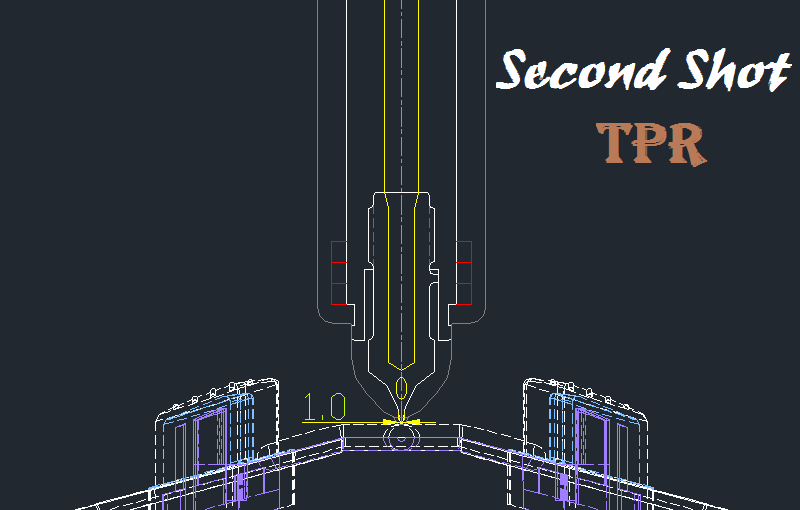

Second Shot

■ Product Weight : 4.15 g

■ Molding Resin : TPR / Black or Gray

■ Nozzle Type : Pinpoint gate

■ Gate Location : Runner

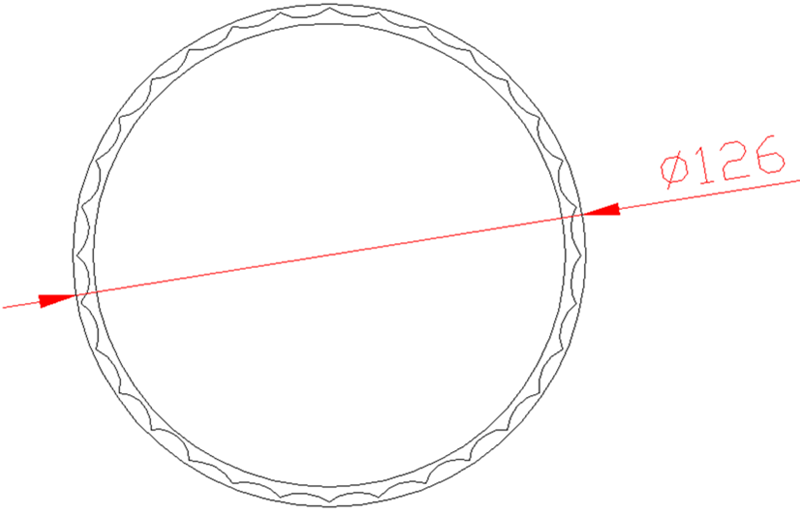

 Disposable Bowl Disposable Bowl


Product Weight : 14 g (thin wall)

Molding Resin : PP

Number of Cavity : 4

Nozzle Type : Valve gate

Gate Location : Part

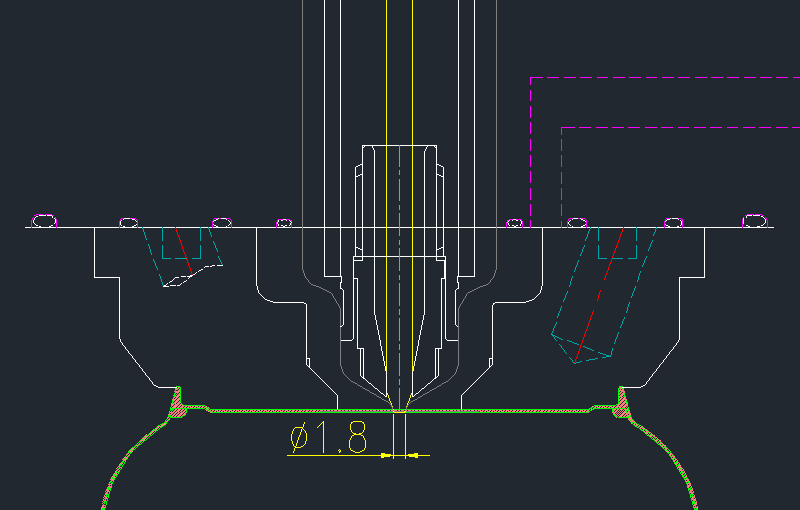

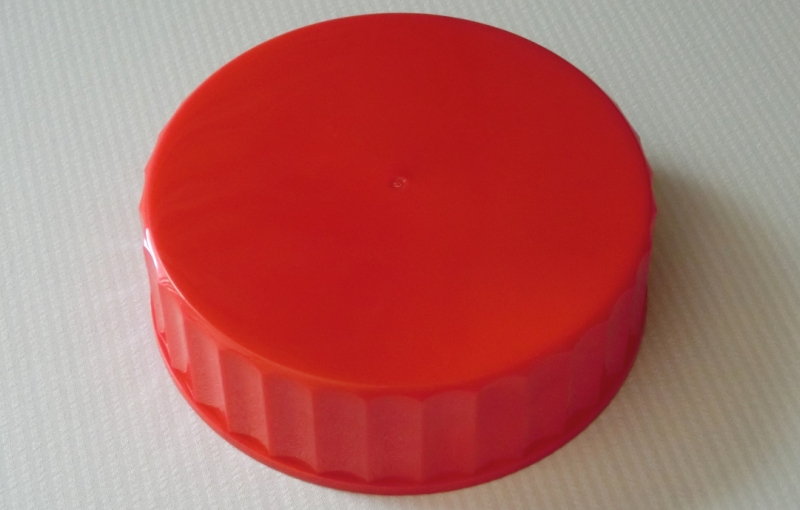

Screw Cap with Storage JarScrew Cap with Storage Jar

◆ Product Weight : 55 g

◆ Molding Resin : PP

◆ Number of Cavity : 2

◆ Nozzle Type : Pinpoint gate

◆ Gate Location : Part

Cooling FanCooling Fan

■ Product Weight : 22 g

 Molding Resin  : PBT+GF 30%

Number of Cavity : 1 (Single nozzle)

Nozzle Type : Pinpoint gate

Gate Location : Part

Bicycle PedalBicycle Pedal

● Product Weight : 150g

● Molding Resin : PP

● Number of Cavity : 4 cavity

● Number of Nozzle : 2 nozzle

● Nozzle Type : Open gate

● Gate Location : Runner

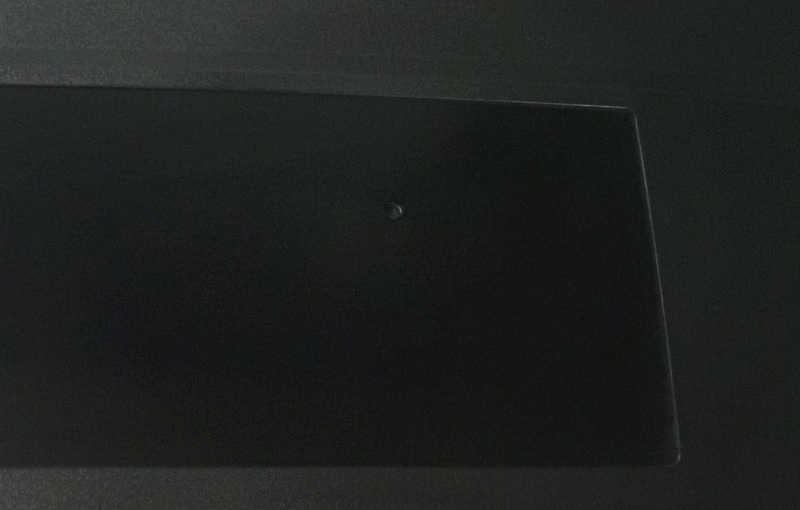

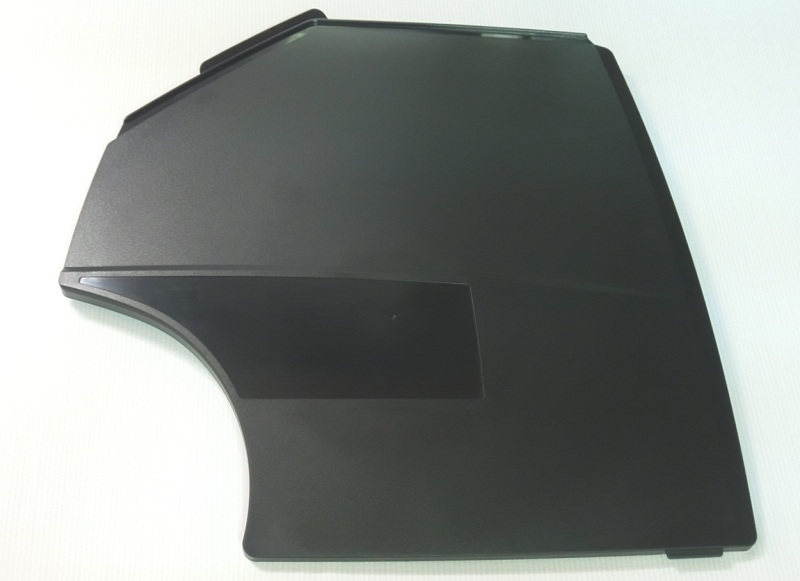

Cover with Fitness EquipmentCover with Fitness Equipment

◆ Product Weight : 605 g

◆ Molding Resin : ABS

◆ Number of Cavity : 1

◆ Nozzle Type : Valve gate

◆ Gate Location : Part

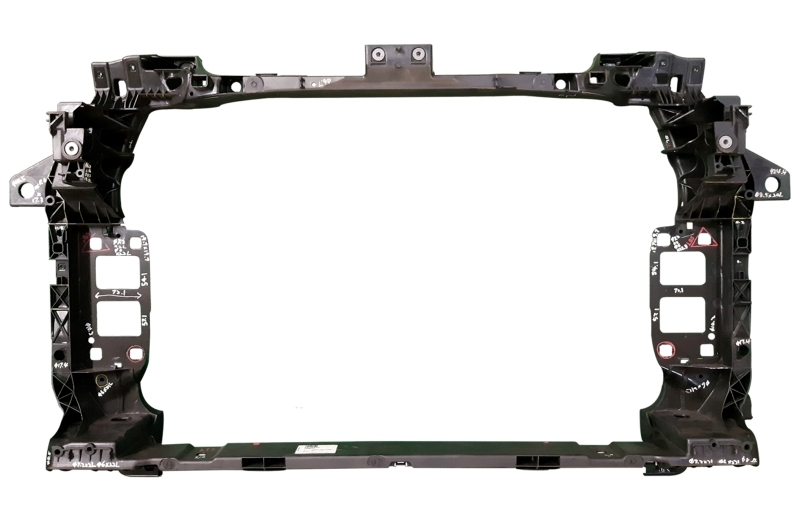

Radiator MountingRadiator Mounting

■ Product Weight : 4780 g

■ Molding Resin : PA6+GF30%

■ Number of Cavity : 1

■ Nozzle Type : Open gate / 7 pcs

■ Gate Location : Part & Runner
